Folding seat 2.0
Folding seat. Additional seat with integrated seat belt for the transport of additional passengers in the motorhome.

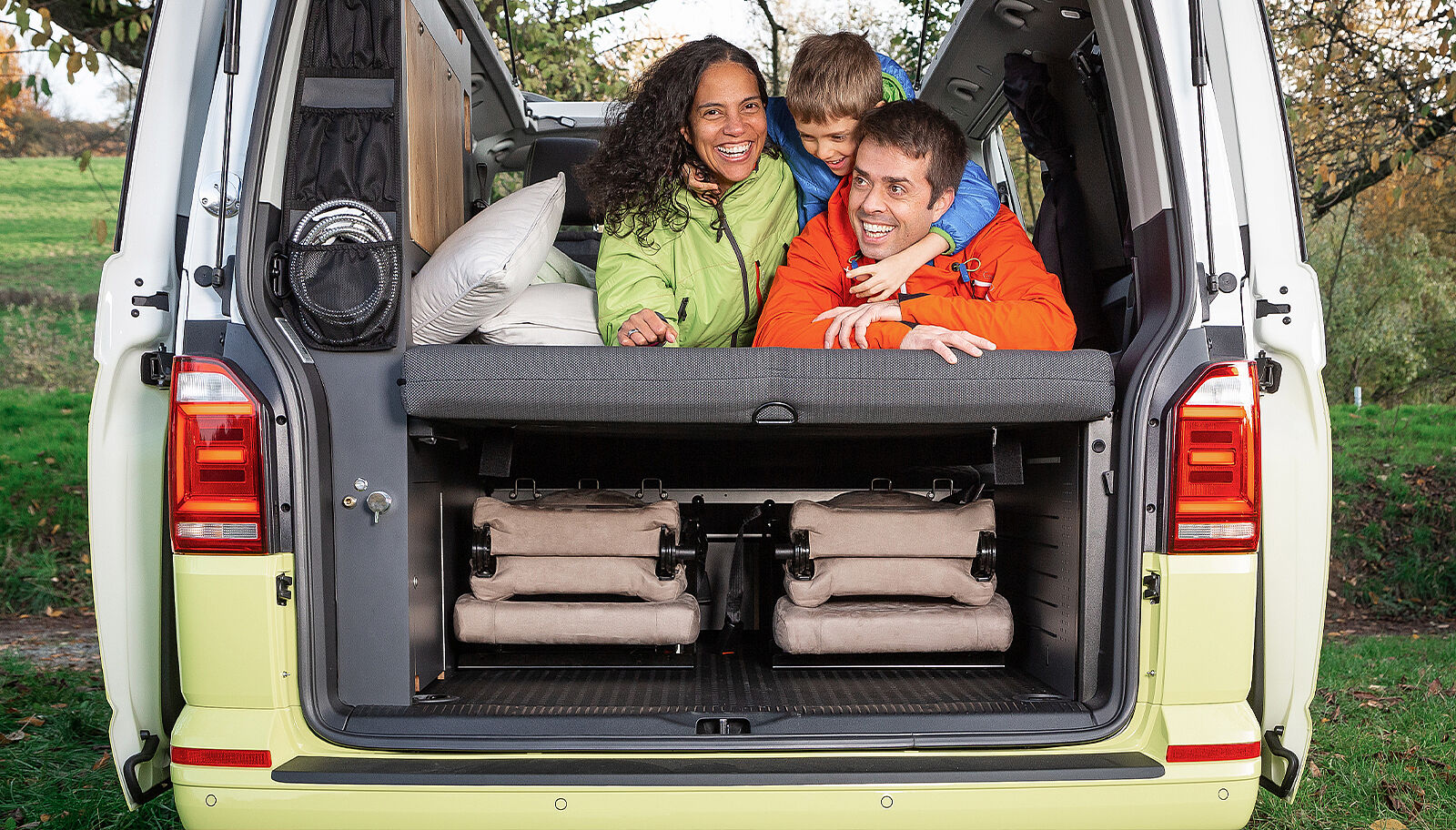

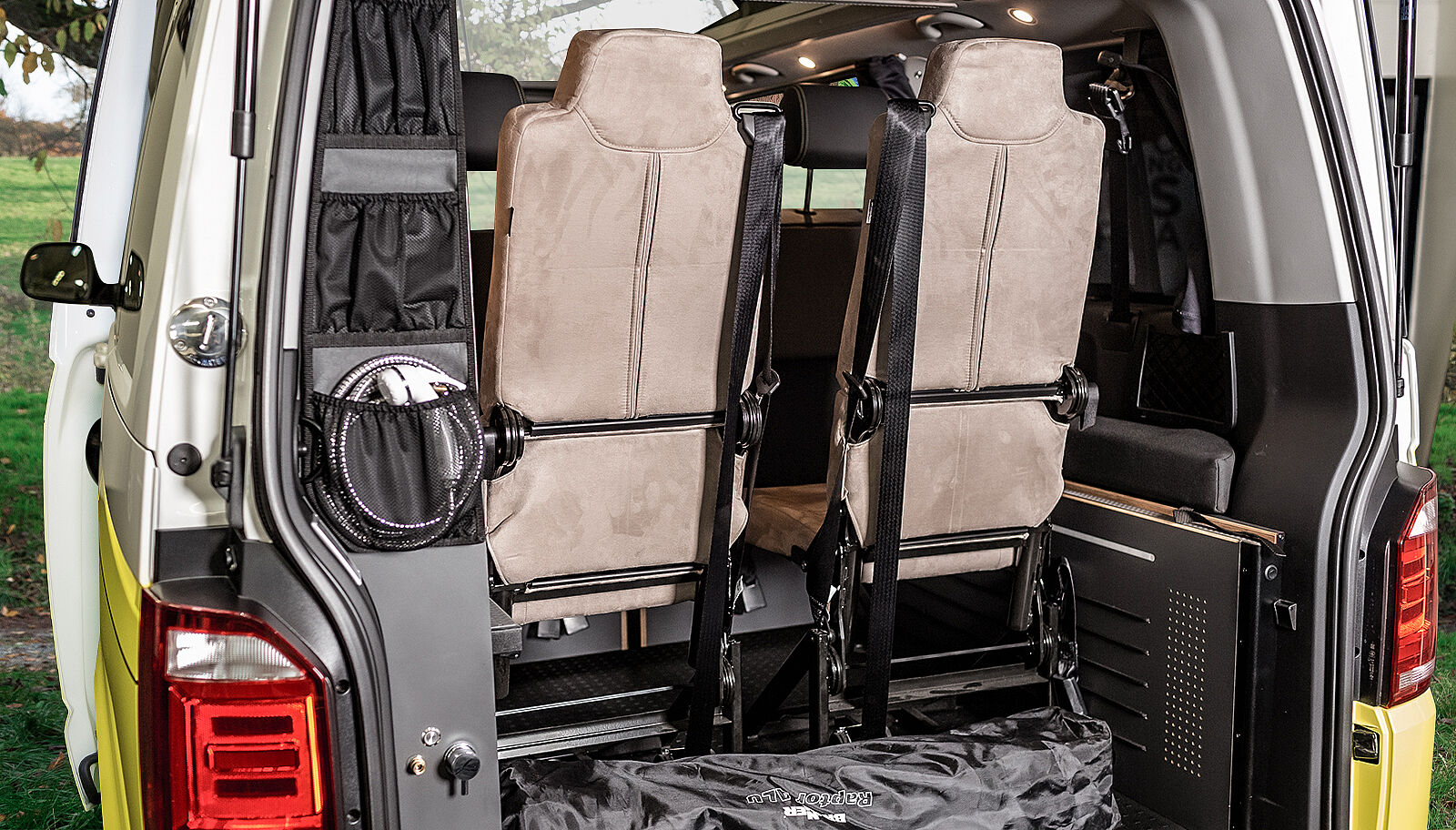

The folding seat can be optimally integrated into the existing motorhome furniture layout. The seat folds out or back together with the flick of a wrist or optionally can be completely removed.When not in use, the entire structure disappears under the seating area. The folding seat can be used in a variety of vehicles with the corresponding adaption.NEW: With a base plate pre-assembled in the chassis, the seat can easily be installed or removed when not in use.
Folding seat 2.0
+ Completely stowable within the seat bench
+ Removable version (vor outdoor use)
Usage
Motorhome, in direction of travel |
Rear-seat passenger |
Standard equipment
2-part backrest |
Integrated 3-point seat belt |
Integrated headrest |
ISOFIX (Series) |
Function
Foldable |
Technical specifications
Dimensions | W 450 x D 500 x H 1195 mm |
W 450 x D 540 x H 340 mm (when stowed) | |
Weight | approx. 24 kg |
ISOFIX | in series |
Headrest | integrated (tested acc. to ECE R17) |
