Comfort seats

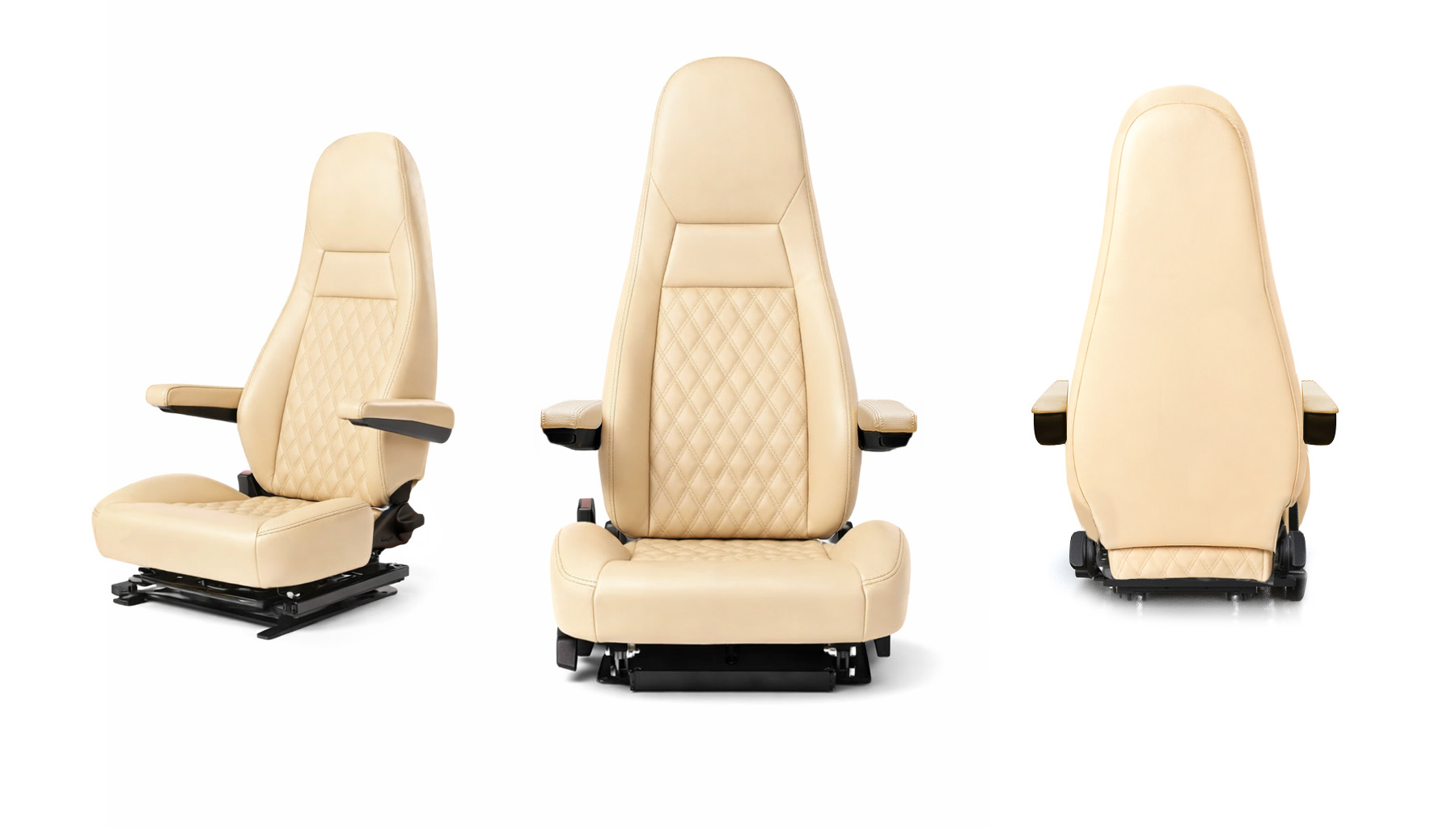

Milan

Driver and passenger seats without integrated seat belt

The Milan in the Aguti design is mainly used in vehicles that are already equipped with a seat belt system on the B-pillar. Extra wide, height-adjustable folding armrests, stepless backrest adjustment and anatomically-adapted contact surfaces for legs and back provide for extremely comfortable and relaxed sitting.

Advantages compared to the original seat

Lower installation height
Ergonomic foam shape and more sitting depth prevent legs from falling asleep
Matching swivel consoles for the vehicle
Various additional features
Equipment versions Basic, Standard, NV or HNV

Note: The material selection for the seats shown is only exemplary.

Our seats are only available for body manufacturers!

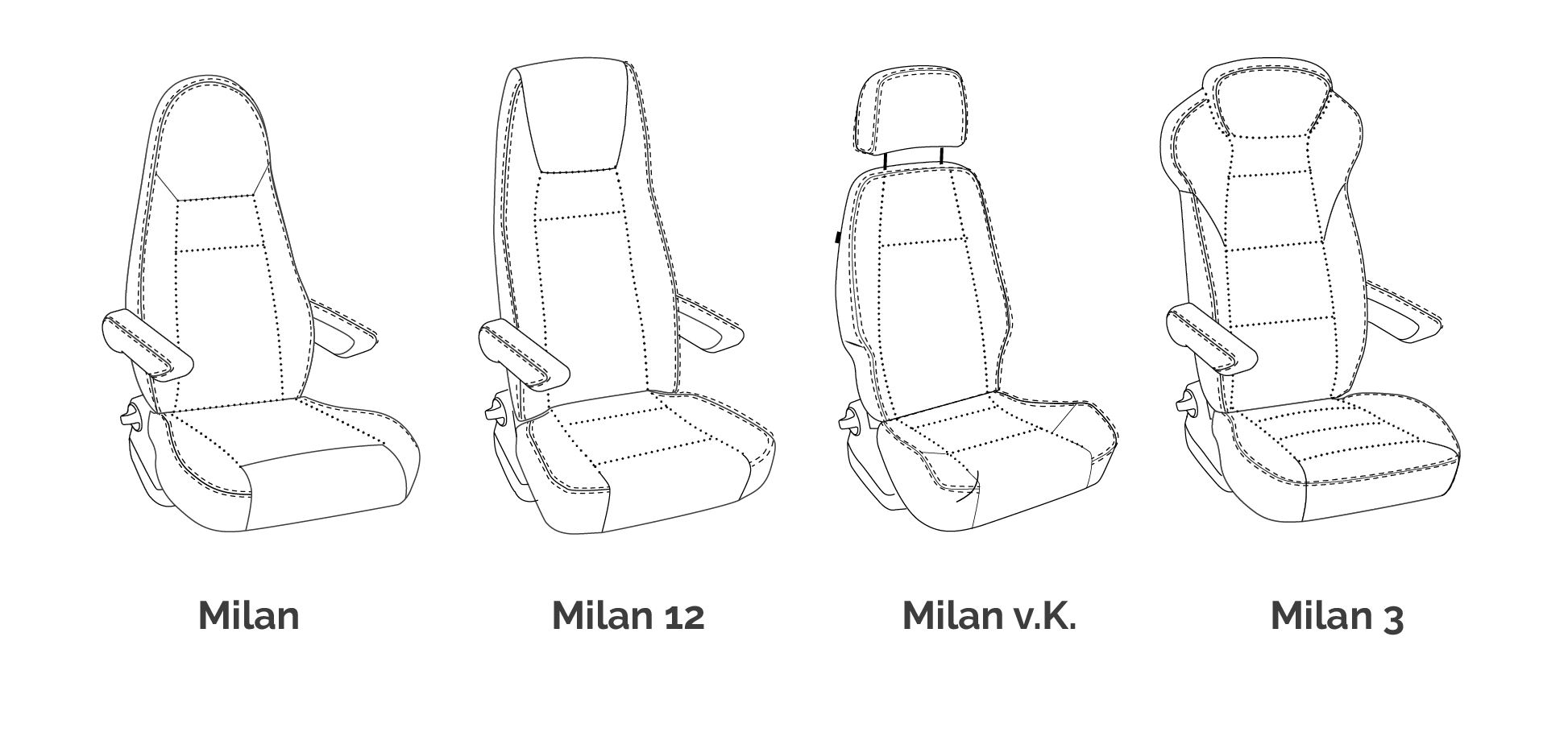

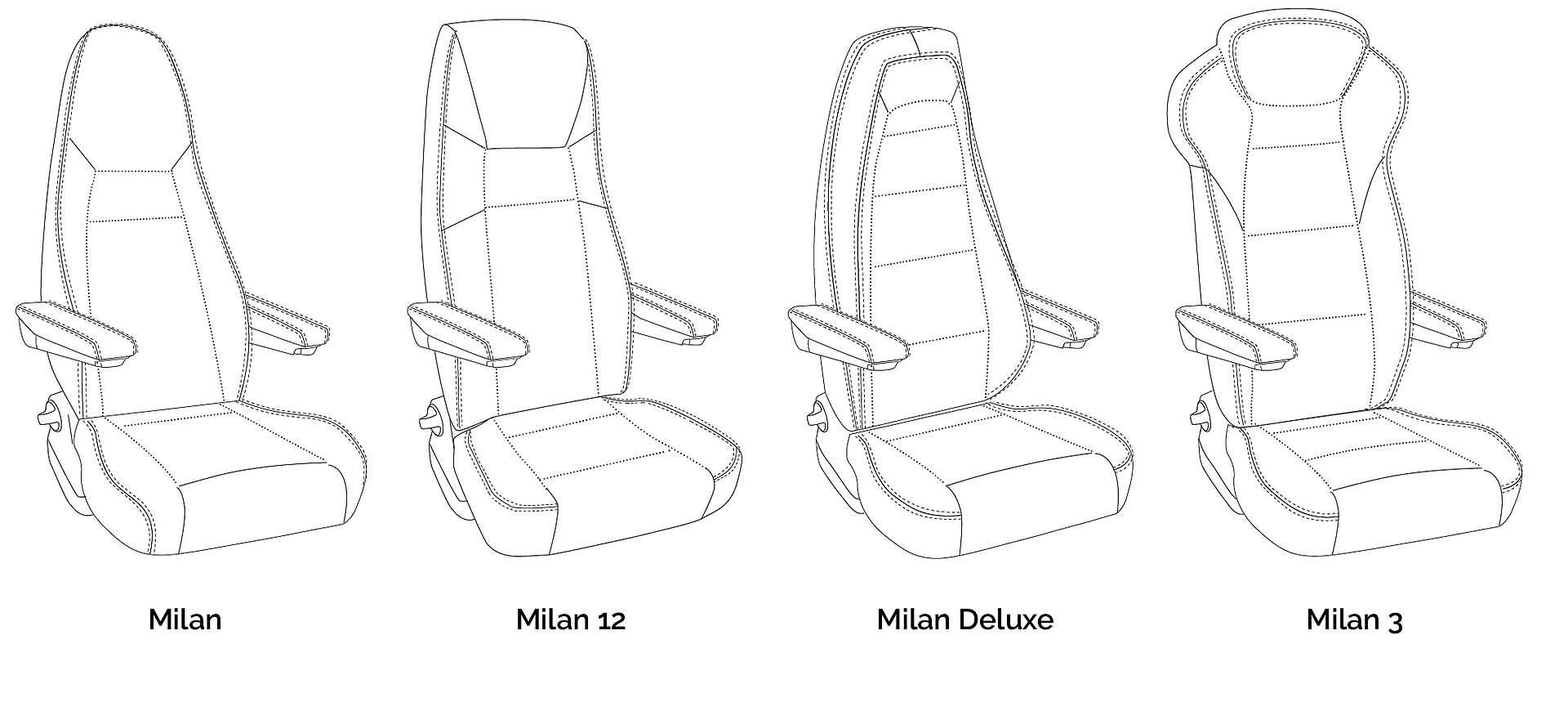

All models are each available in different designs and armrest versions.
The features can be selected between standard and HNV (height inclination adjustment).
Additional features such as seat heating or lumbar supports can also be ordered at any time.

Comfort seats

+ Excellent sitting comfort and safety
+ Individual adaptation of design and features

Usage

Driver´s cab

for driver, passenger

Features

Seat adjustment STD or HNV

Integrated or adjustable headrest

Adjustable armrests "00" or "Smart"

Adjustable backrest

Buckle/pretensioner

Sliders

Seat occupancy detector

Swivel

Functions

Armrest inclination

Backrest inclination

Longitudinal adjustment on silders (200 mm)

Comfort options

Seat heating

Lumbar support

Technical specifications

Dimensions	B 580* x T 590 x H 970/1024 mm (Std/HNV)
Weight	ca. 16/21 kg (Std//HNV)
Backrest adjustment	- 25° \| + 25°
Crosswise/length adjustment	200 mm
Seat rotation	360°
NV Seat inclination	-
HNV Height tilt back/front	40/100 mm

*Overall width incl. armrests, overall heigth incl. headrest
backrest inclination forwards (-) | backwards (+)

Please note: The choice of materials for the seats shown is exemplary.
